Civil engineering / drainage

Retention sewer pipe AQUATUB-Rw

PE-HD storm water sewer pipe with with profiled outer wall to DIN 16961 for optimised and practice-oriented designs of storage sewers and flood control reservoirs

Application

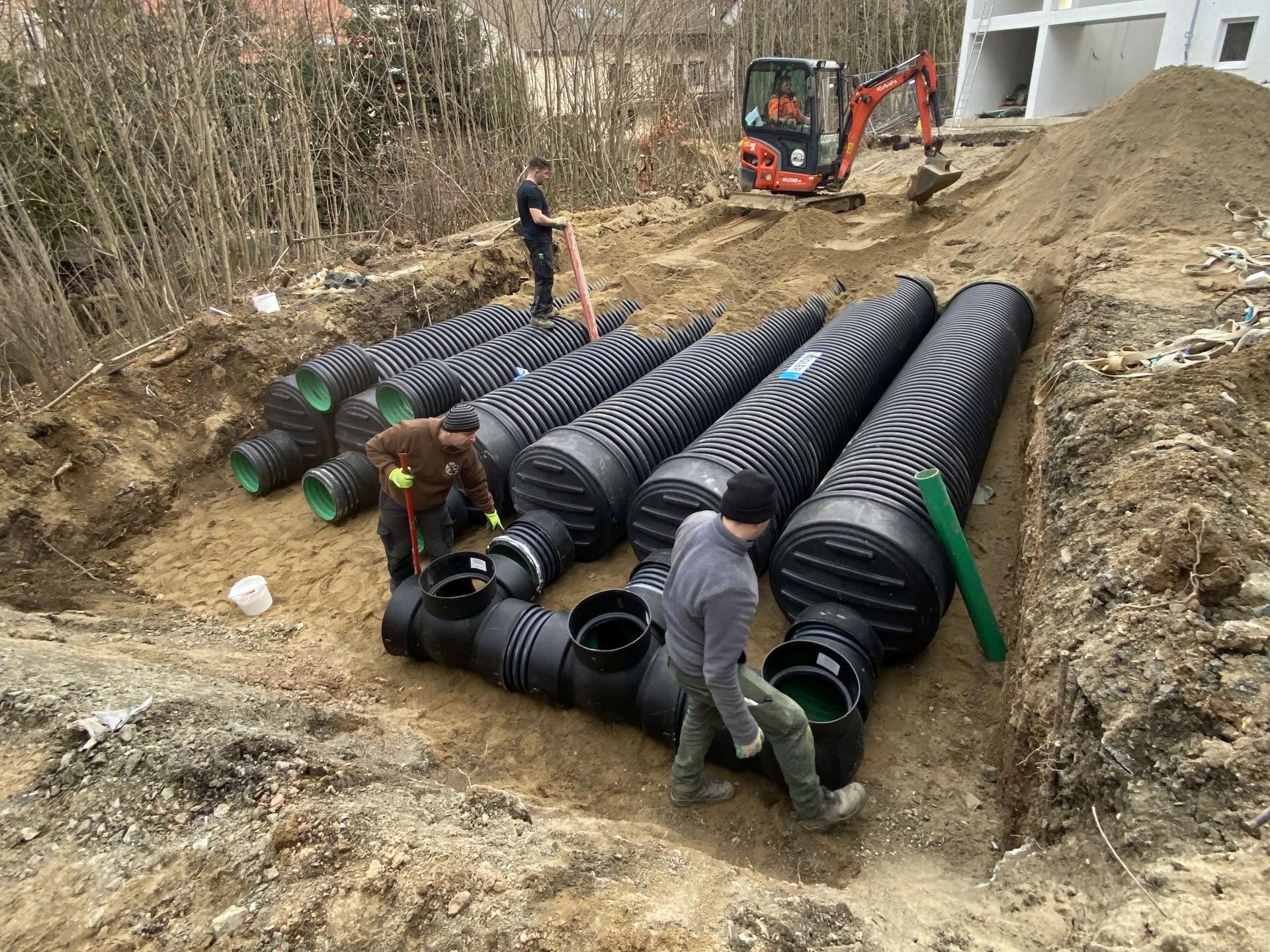

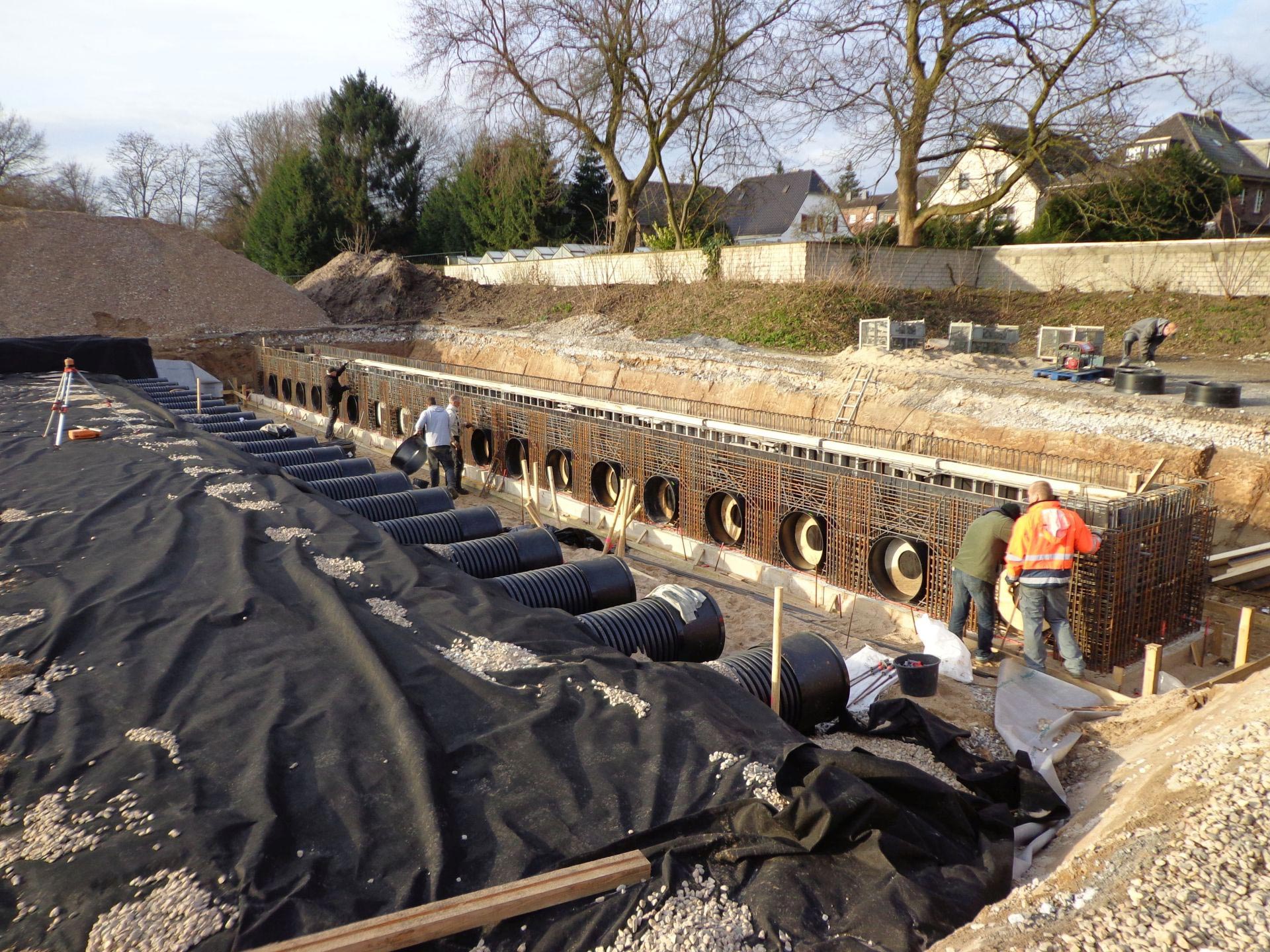

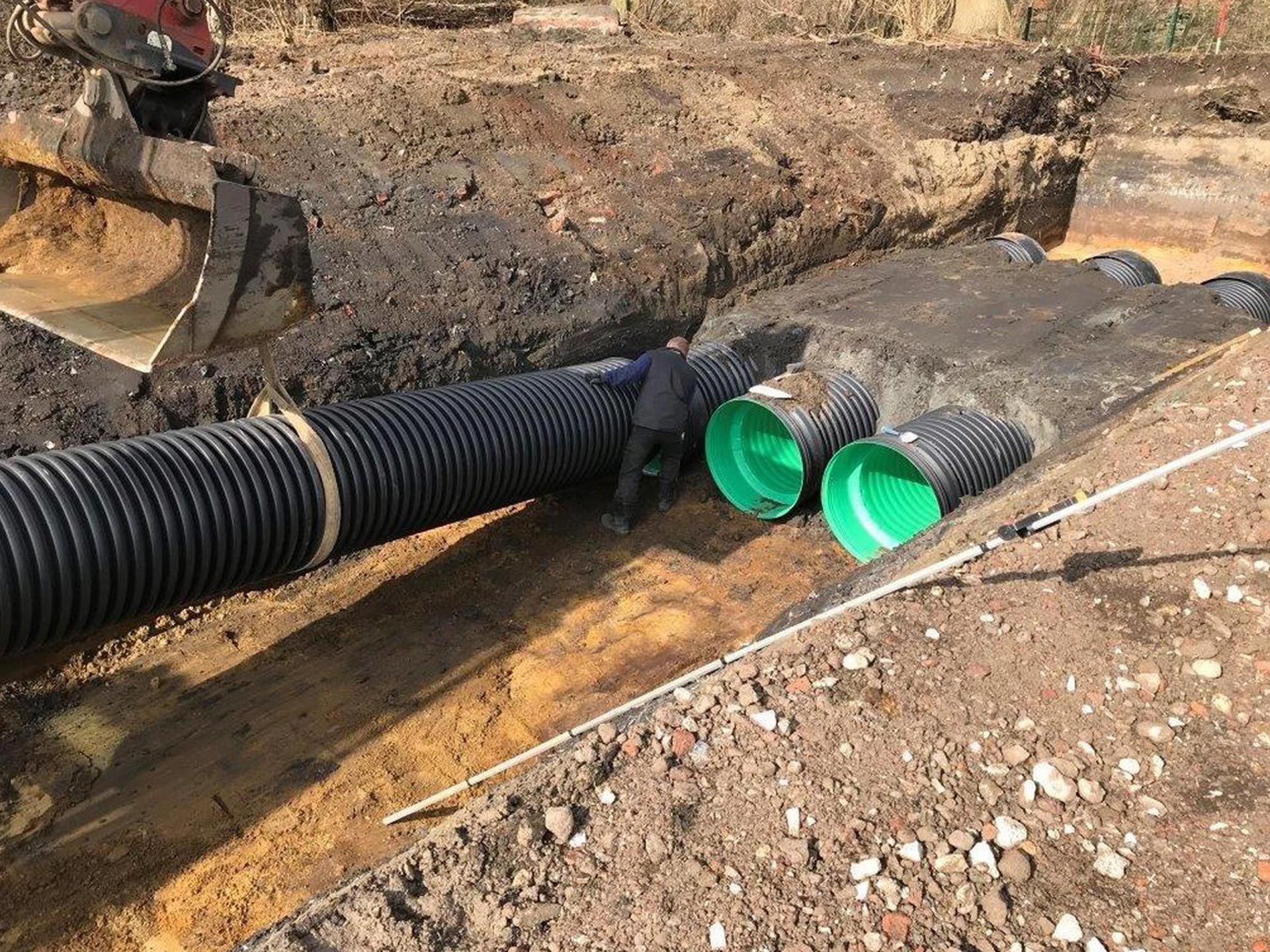

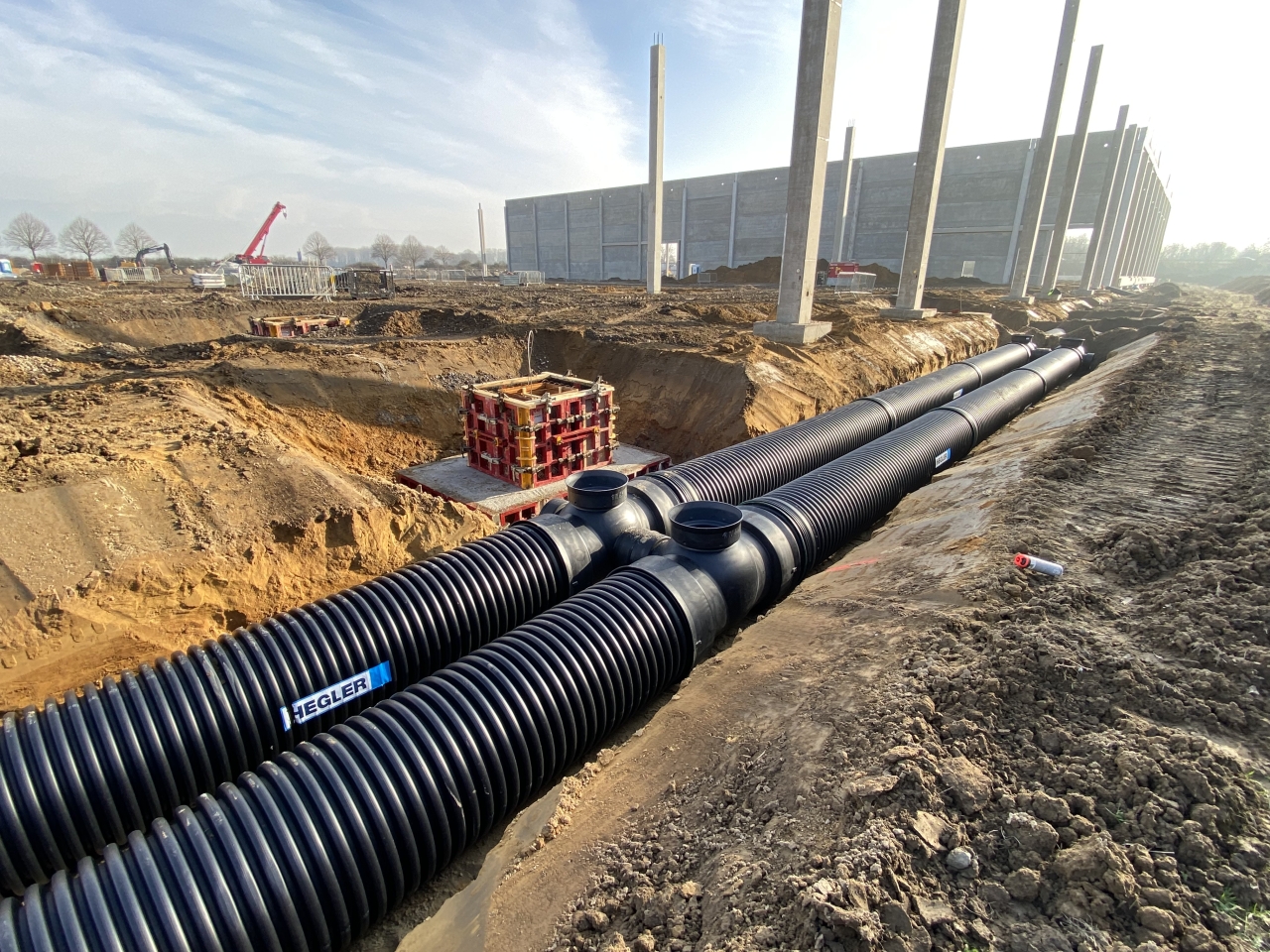

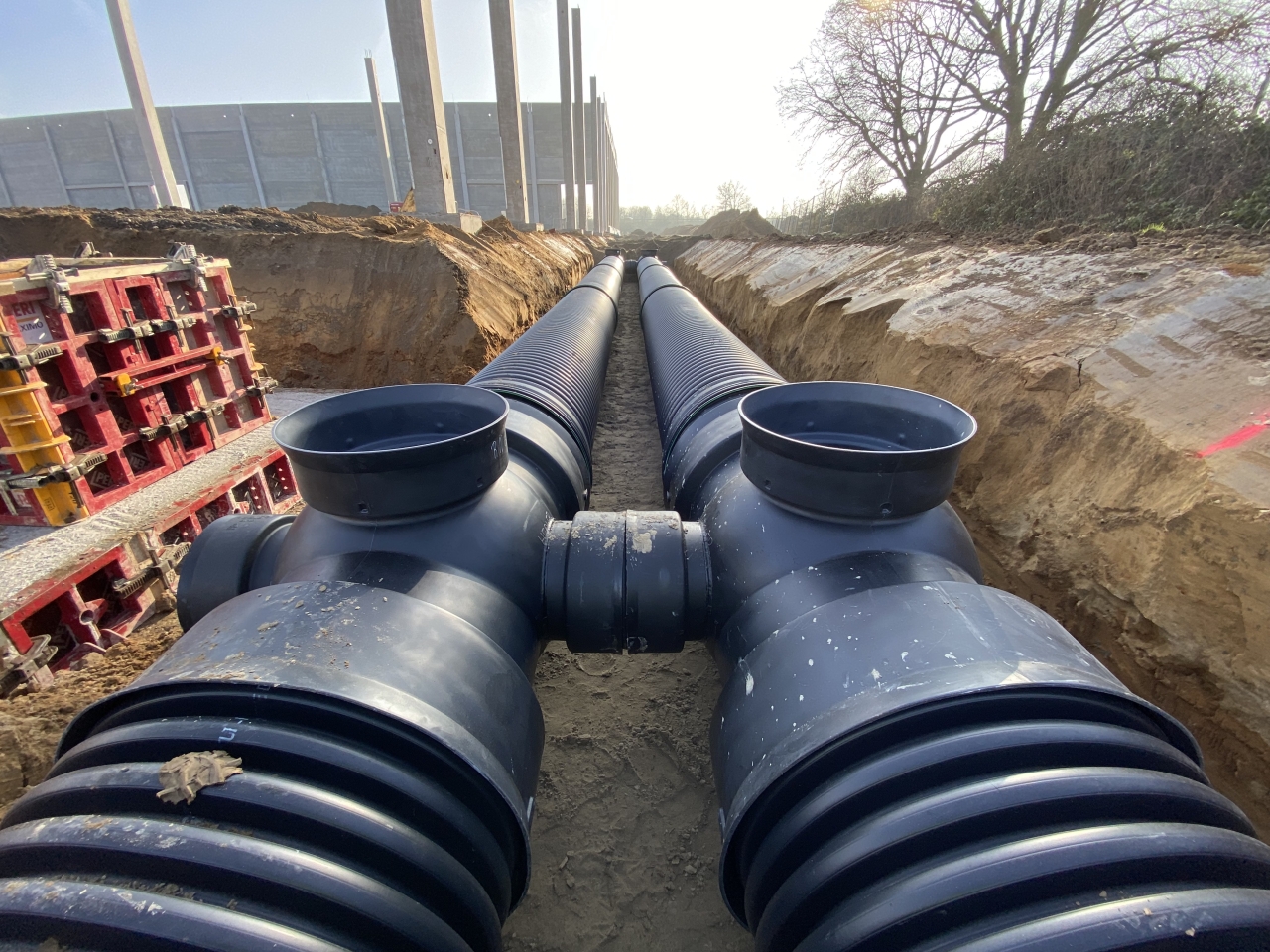

In building projects where a professional discharge or local infiltration of the surface water is not possible extensive structure work such as retention basins becomes necessary for temporary storage of accumulating water. The AQUATUB-Rw storm water sewer pipe, laid as a single line or in multiple parallel pipe strands, is a professional and economic way to provide the required storage volume.

Together with the proved HEGLER fittings and MULTI-inspect chamber systems individual laying arrangements can be achieved with the largest possible retention volume on the basis of the available space. Thanks to the low weight of AQUATUB-Rw twin wall pipes fast and thus low-cost installation as well as reliable stability for use in SLW 60 classified roads is guaranteed. For optimised installation arrangements, project-specific structural analyses, or any other technical advice on the design, our specialist consultants may be contacted at any time during the planning phase.



  • Polyethylen (PE-HD) twin wall pipe to DIN 16961 and DIN 4262-1 and following DIN EN 13476-3
  • Retention sewer pipe in nominal sizes DN 400 to DN 800 (based on inside diameter)
  • Outside corrugated/inside smooth
  • Ring stiffness S ≥ 8.0 kN/m² to DIN EN ISO 9969 (SN 8)
  • Quality-controlled by SKZ, Test and monitoring mark A 352

  • Suitable for SLW 60 classified roads
  • Resistant to abrasion and biochemical attacks
  • Resistant to high-pressure flushing to DIN 19523
  • Temperature-resistant from -20 °C to +80 °C
  • Guaranteed service-life of PE-HD ≥ 100 years to DIN 8074

  • Pipe system of I.D. series for big retention volumes
  • Easy handling at low weight

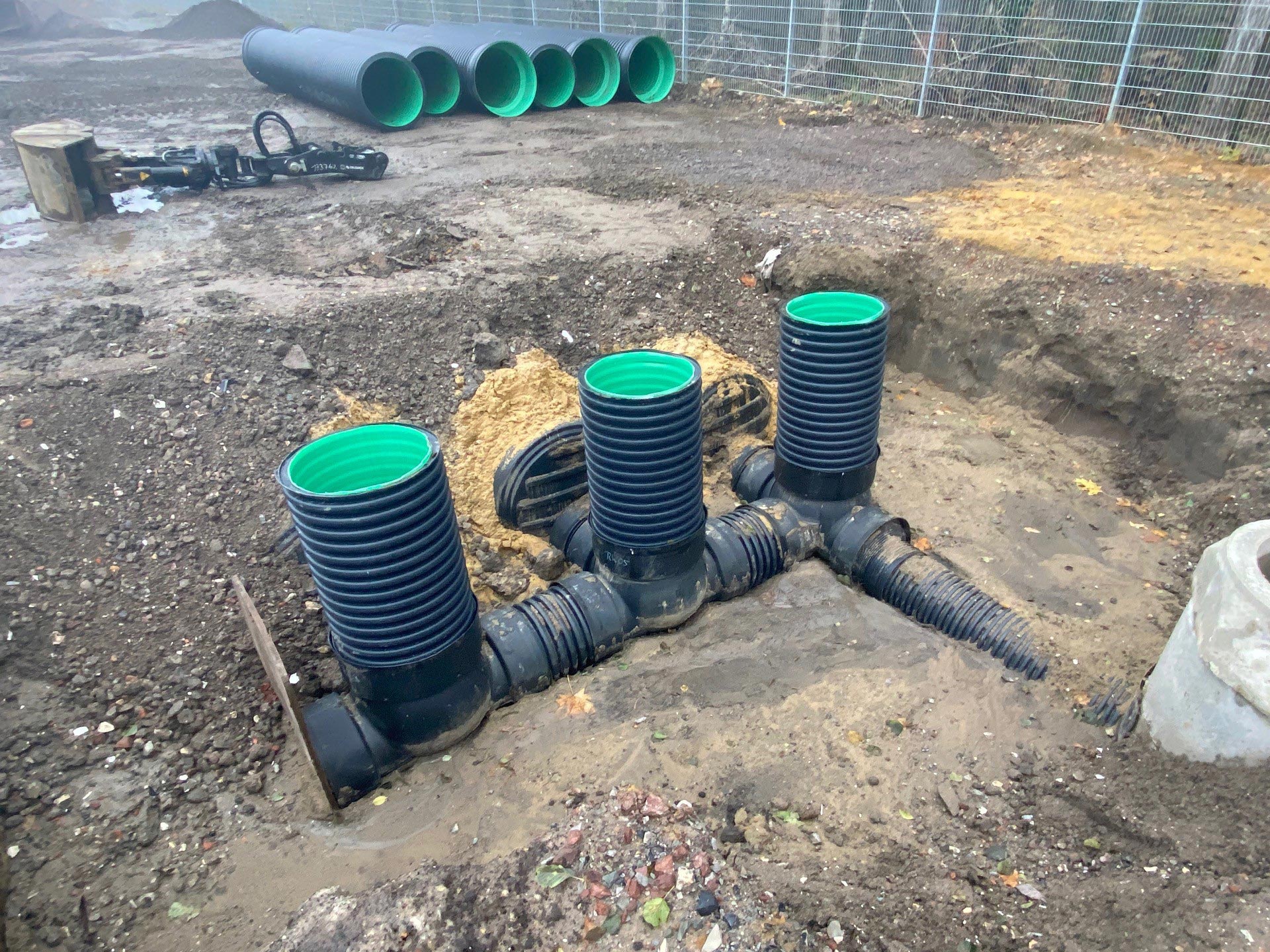

  • Compatible with chamber systems MULTI-inspect
  • High impact resistance – rupture-proof, even at low temperatures
  • Leak-tight up to 0.5 bar to DIN EN ISO 13259
  • Rapid construction progress, economic basis for calculation
  • Extensive range of accessories

Size range

Size range retention sewer pipe AQUATUB-Rw / retention volume

Nominal size ID mm OD mm Volume m3/m
DIN 400 396 464.0 0.123
DIN 500 498 579.5 0.195
DIN 600 594 691.9 0.277
DIN 800 791 919.3 0.493
