HEGLERFLEX-SHK

Flexible plastic jacket pipes of PE for sanitary and heating engineering

Application

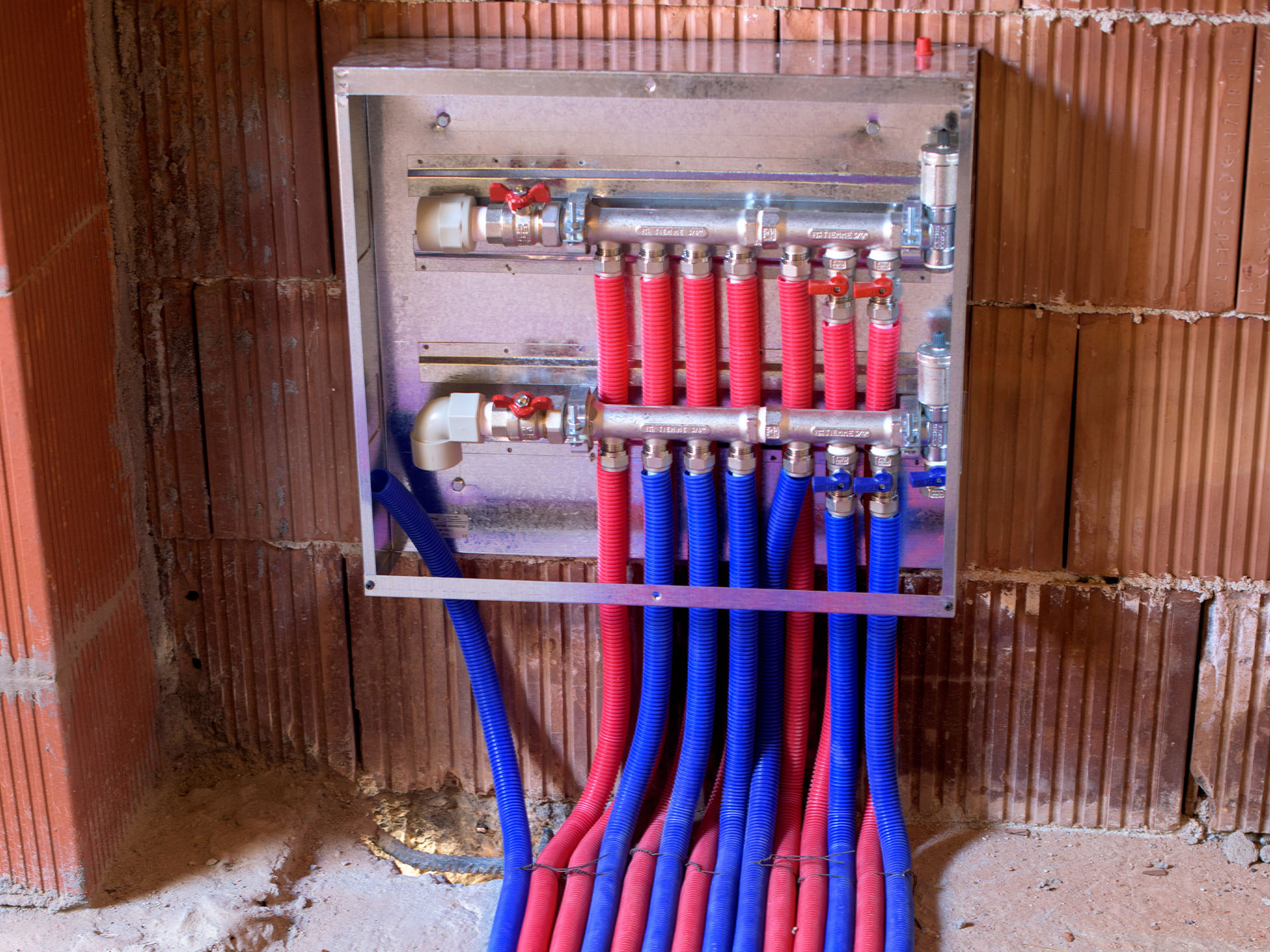

The HEGLERFLEX-SHK jacket pipe is a flexible protective tube used with pipelines for heating and sanitary engineering inside buildings.

The stability requirements for protective tubes, specifying an adequate deformation resistance during construction and in the installed condition, are complied with. When used as a protective pipe in a heating system, permanent resistance up to an inlet temperature of 60 °C is ensured. The jacket pipes are available in two different qualities and in customer-tailored design (to KIWA BRL-K 536
Part D or KOMO BRL 5607, and SINTEF directive
No.02-2014/1^st edition).

PE corrugated pipe, outside and inside corrugated
Admissible temperature range, without mechanical load:
Short-term: from -15 °C to +90 °C
Permanently: from -15 °C to +60 °C
Material properties:
Modulus of elasticity [Mpa] DIN EN 53455 > 1000
Impact resistance [kJ/m²] DIN 53453 NB
Yield strength [Mpa] DIN EN 53455 > 22
Ultimate tensile strength [%] DIN EN 53455 > 300

Product features of KIWA/KOMO quality
KIWA assessment guideline BRL-K 536 Part D
KOMO assessment guideline BRL 5607
Product features of SINTEF quality
SINTEF directive No. 02-2014/1^st edition
Easy handling
Halogen-free – non-flame retardant
Good chemical resistance to lubricants and fuels, paints and cleaning agents
Resistant to rupture and cracking
Quality monitoring in accordance with QM
Flexible coiled product available in definable coil lengths

Black (different colours on request)

Size range

HEGLERFLEX-SHK to BRL-KIWA/KOMO

Nominal size		DN	16/21	20/25	23/28	28/34
Outer diameter		(mm)	20.7	24.7	28.5	34.5
Inner diameter		(mm)	≥ 16.0	≥ 20.0	≥ 22.7	≥ 28.0

HEGLERFLEX-SHK to SINTEF-directive

Nominal size		DN	16/21	20/25	23/28	28/34
Outside diameter		(mm)	20.9	24.9	28.2	34.2
Inside diameter		(mm)	≥ 16.0	≥ 20.0	≥ 22.7	≥ 28.0
